JM’s bike





JM got his new bike a few weeks ago and I’ve been meaning to share some photos of it.  First a couple from during the construction, and then a few of the finished bike.  Click on any of the images to see them full size.

IMG_1811

Detail of seat stay caps and seat tube-top tube lug. The slot for the seat binder has not been cut yet.

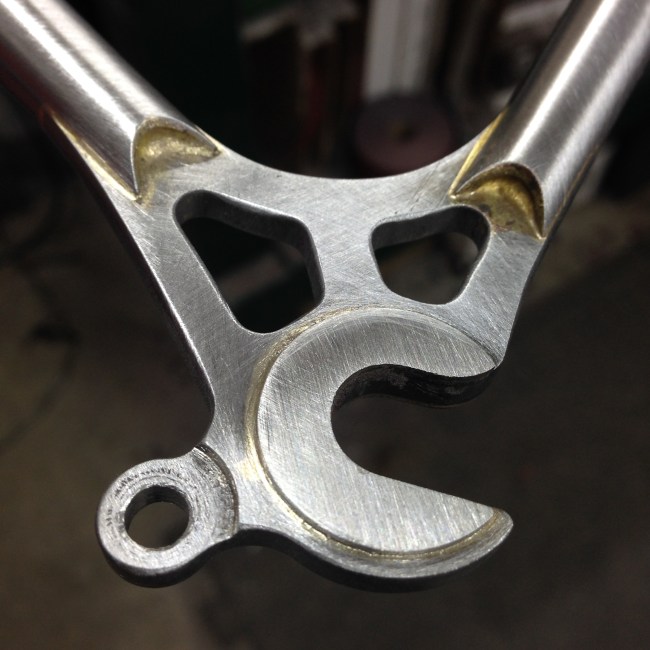

IMG_1813

Inside face of the left rear dropout. I get the dropouts from Mitch Pryor of MAP bicycles. They’re made from chromoly and come with stainless steel faces which are silver soldered on. I modify the eyelet by thinning it and removing the threads so that the fender can be mounted with a drawbolt instead of a P-clip.

IMG_2037

This is the right front dropout. The lowrider rack attaches to the upper eyelet, and the fender stay attaches to the lower eyelet with a drawbolt. The generator hub also makes its ground contact with this dropout while the left one has an insulated insert to make the positive connection.

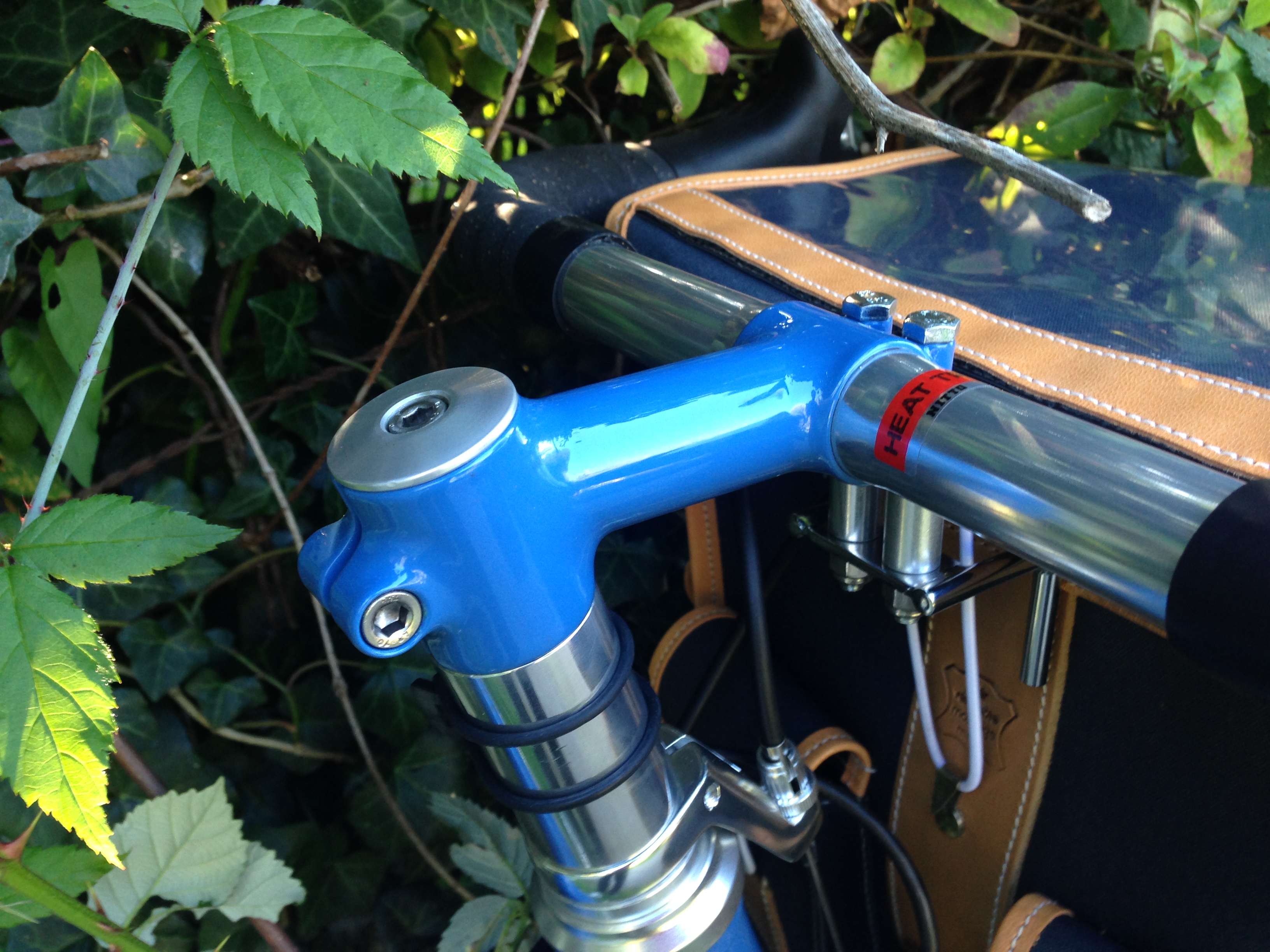

IMG_2036

Custom stem to match the frame and fork.

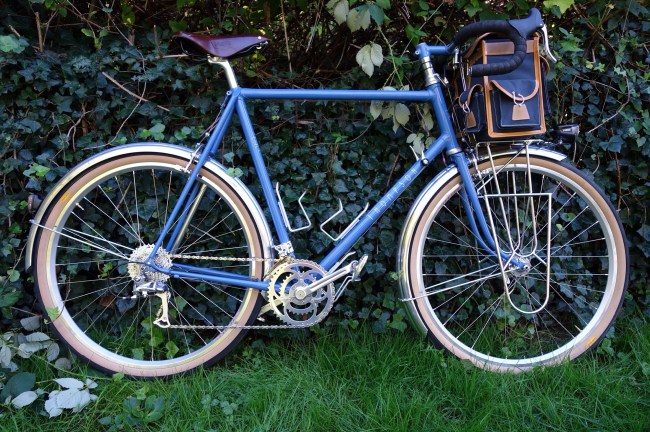

IMG_2043

The completed bike, ready for its first test ride!



When delivery day came, the owner’s wife drove him to my shop.  He rode the bike home and a couple days later I got an email telling me he had gone out for a 100km ride after work.  I hope he’s as happy with it as I am!
